Coffee Packaging Materials Explained: Film Structures, Barrier and Thickness

A coffee pouch is not one material. It is a laminate of three to four films bonded together: an outer layer that carries print, a core layer that blocks oxygen, and an inner sealant layer that closes the bag and touches the coffee. Ask what a coffee bag is made of and the correct answer is a structure — PET/AL/PE, PET/VMPET/PE, PE/EVOH/PE or a kraft-paper laminate. Those structures differ by roughly three orders of magnitude in oxygen transmission, and that difference decides how long your roast stays drinkable.

Key Takeaways

• A coffee pouch is a laminate, not a single material. The barrier layer — aluminium foil, metallised PET or EVOH — decides shelf life; the outer and inner layers decide printability, stiffness and seal strength.
• Published laminate data puts PET/AL/PE below 0.5 cc/m²/day oxygen transmission, PET/MPET/PE around 1.5, and OPP/OPP above 1,500 (MyPlast Technical Team, 22 December 2024).
• Real packages behave worse than datasheets: foil laminate stayed below the instrument's detection limit while metallised PET was already measurable before handling (Admiral Packaging, 10 July 2026).
• Set thickness from fill weight and roast — 100–130 μm for metallised PET, 120–150 μm for foil, never below 100 μm for compostable film (OK Packaging, 6 October 2026).
• The EU PPWR has applied since 12 August 2026, with recyclability assessed against EU design-for-recycling criteria from 2030 (GreenBioBag, 19 September 2026).

What Are Coffee Packaging Materials Made Of?

A coffee packaging material is a multi-layer laminate supplied as rollstock or finished pouches, built from a printable outer film, a barrier core and a heat-sealable inner film. Total thickness usually falls between 80 and 200 microns.

Three functional layers appear in almost every coffee pouch sold today (MyPlast Technical Team, 22 December 2024). The outer print layer is PET, BOPP or nylon at 12–25 μm, providing the printable surface, strength and finish. The barrier layer is aluminium foil at 6–12 μm, EVOH at 3–15 μm, or a vacuum-deposited metallised coating — this is what keeps oxygen and moisture out. The inner sealant layer is LDPE or CPP at 30–100 μm, and it is the only layer touching the coffee.

Structure names read from outside in, so PET/AL/PE means polyester print layer, aluminium foil barrier, polyethylene sealant. When a supplier quotes a “120-micron coffee pouch”, that figure sums every layer including adhesive — not the thickness of the barrier protecting your roast.

Which Film Structure Should You Choose for Coffee?

Choose by the shelf life you must deliver, not by pouch shape. For retail roasted coffee targeting 6–12 months, a foil or metallised laminate is the standard starting point; for fast turnover, a two-layer PET/PE pouch is usually sufficient and considerably cheaper.

Source: MyPlast Technical Team, 22 December 2024. OTR measured at 23 °C and 0% relative humidity; WVTR at 38 °C and 90% relative humidity.

A second buyer's guide warns against treating such numbers as a shopping list, classifying barrier performance in bands — ultra-high at or below 1 cc/m²/day, high between 1 and 10, moderate between 10 and 100, and basic above 100 — while noting these are a screening tool rather than a shelf-life guarantee (CloudFilm, 20 August 2026). Coffee sits in the high-barrier band, which is why foil and metallised structures dominate. Selling whole bean within three months of roast lets you step down; exporting or selling ground coffee means stepping up. For how format interacts with barrier choice, see our guide to coffee packaging bag types.

Why Oxygen Barrier Decides Shelf Life, Not Thickness

Oxygen transmission rate predicts shelf life far better than film thickness, because two pouches with identical micron counts can have completely different barriers. Thickness tells you how the bag feels; OTR tells you what happens to the coffee inside.

That was tested directly on specialty coffee. Researchers packaged green beans, roasted beans and ground coffee in six formats and ran accelerated shelf-life testing at 40, 50 and 60 °C using Arrhenius modelling (Fernandez-Rosillo et al., Beverages 11(6):154, 2025). The triple-laminated bag with a degassing valve and zipper produced the strongest correlation at 40 °C (R² = 0.975) while a pressed cardboard box was weakest (R² = 0.921) — the structure, not the appearance, set the ceiling.

There is also a limit no film can fix. Industry guidance for roasters reports that residual headspace oxygen above 5% causes significant oxidation within days, recommends staying at or below 3%, and notes contract and private-label work often specifies 2% or lower, with the best closed flushing systems reaching around 0.08% (Rovema, John Panaseny, 21 December 2023). Barrier film and nitrogen flushing are therefore one decision: a high-barrier pouch filled with 5% residual oxygen stales faster than a mid-barrier pouch flushed to 1%. For where gas exits the pouch after packing, see our explainer on how one-way degassing valves work.

How Foil and Metallised Film Compare in the Real World

Foil laminate outperforms metallised PET once a package has been handled, shipped and stocked — a gap invisible on flat-film datasheets but clear the moment real packages are tested.

An independent packaging manufacturer bought consumer-ready coffee pouches from the market, measured oxygen transmission per ASTM F1927 (100% oxygen, 23 °C, 48 hours, detection limit 0.05 cc/m²/day), then flexed samples at three severity levels (Admiral Packaging, 10 July 2026):

Read that as a risk statement rather than a ranking. The foil laminate sat below the detection limit until medium flexing, while the metallised structure transmitted measurable oxygen straight out of the sample bag and moved by roughly an order of magnitude under heavy handling.

This is not an argument to buy foil for everything. Metallised PET is lighter and generally cheaper than true foil, and for shorter shelf lives it is a sensible choice. Match the barrier route to how much handling and time the pouch will accumulate — long export chains and pallet stacking are where the difference compounds. Compare the formats we supply in our box bottom bag range and flat and foil pouch range.

What Total Laminate Thickness Do You Actually Need?

Thickness should follow fill weight, coffee type and roast oil content, and manufacturers publish working ranges rather than one universal number. Under-specifying causes seal failure and pinholes; over-specifying adds 15–25% to material cost with no measurable gain.

Source: OK Packaging, Dongguan, 6 October 2026.

The same source gives thickness by structure: metallised PET at 100–130 μm as the most widely adopted range for specialty retail coffee; aluminium foil at 120–150 μm, because foil folded too thin develops micro-cracks that quietly degrade the barrier; kraft laminates at 110–140 μm, where paper supplies stiffness only; and compostable or PLA pouches at 100–130 μm, with nothing below 100 μm recommended because compostable films have lower tensile strength and form pinholes in transit.

Roast level changes the answer too. Dark, oily roasts need higher microns and an oil-resistant sealant layer, because coffee oils penetrate the seal and stain the film — the same source notes a 200 μm non-oil-resistant laminate will still fail. To match thickness to formats we stock, compare the stand-up pouch range and the side gusset bag range, or confirm dimensions with our coffee bag size guide first.

What Each Layer in a Coffee Pouch Actually Does

Every layer solves one problem, and removing any of them breaks a specific function. The print layer determines appearance and how well the pouch survives handling. The barrier layer is the performance layer, deliberately thin. The sealant layer does the mechanical work: bonding under heat, resisting punctures, tolerating coffee oils and meeting food-contact requirements.

EVOH deserves a specific warning. It offers excellent oxygen barrier for its thickness and is the usual route to a recyclable high-barrier pouch, but its barrier drops significantly at high humidity, which is why it is always sandwiched between moisture-resistant layers rather than exposed (MyPlast Technical Team, 22 December 2024). If a supplier quotes an EVOH structure without saying which layers protect the core, ask. We break these structures down further on our coffee packaging materials reference page.

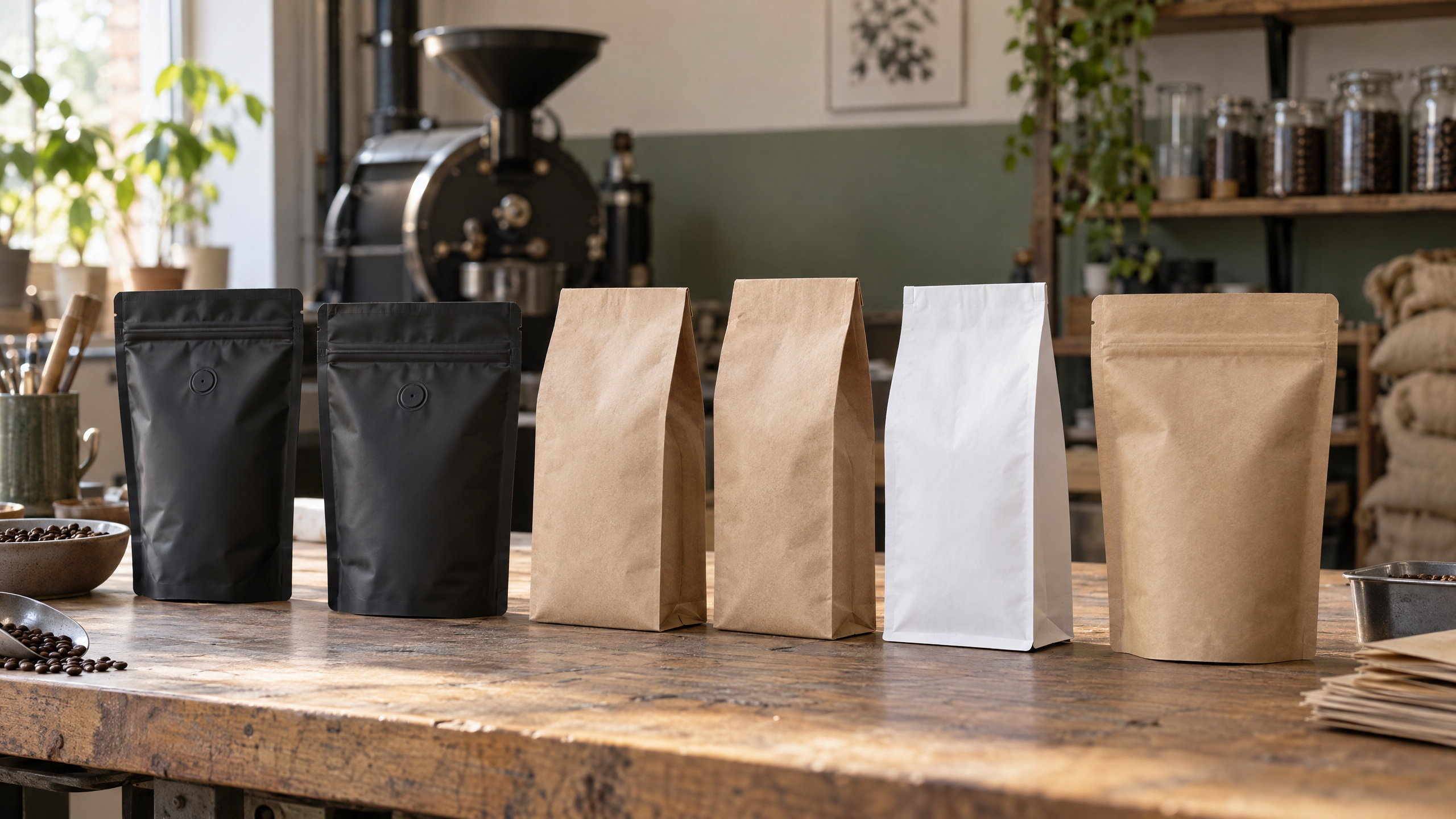

Kraft Paper Coffee Bags: Where the Barrier Really Comes From

Kraft paper in a coffee bag is a visual and structural layer, not a barrier layer. On its own, paper transmits oxygen and moisture far too readily for roasted coffee; freshness protection comes entirely from the film laminated behind it.

This matters because kraft is one of the most requested finishes and one of the easiest to under-specify. A kraft pouch that looks substantial can still carry a thin, low-barrier inner film, so ask for the inner structure and the OTR figure rather than judging by the outer paper. Kraft laminates also sit in the thicker range — typically 110–140 μm as a full composite — because the paper needs enough body to avoid creasing and pinholes. See how this plays out in our kraft side gusset bags and kraft stand-up pouches.

Compostable and Recyclable Structures: What You Trade

Both compostable and recyclable pouches work, but they trade some barrier headroom and require the whole pack — not just the film — to be designed for the intended end-of-life route. Neither is automatically the better environmental answer.

A comparative life-cycle assessment of a multimaterial coffee package against mono-polyethylene and mono-polypropylene alternatives found monomaterial designs delivered roughly a 50% reduction in carbon footprint, and that even under improved 2030 and 2035 recycling scenarios the multimaterial package's impacts stayed higher. The study also recorded a trade-off in barrier properties for monomaterial structures (Cigada, Barrale and Dotelli, Sustainable Materials and Technologies, 2026).

For compostable claims, certification scope matters. EN 13432 remains the long-standing European reference for industrially compostable packaging while harmonised standards are developed, and biodegradable, compostable, industrially compostable and home compostable are not interchangeable (GreenBioBag, 19 September 2026). If sustainability drives your next range, start from the environmentally friendly coffee packaging guide.

What the EU PPWR Changes for Coffee Packaging Materials

The EU Packaging and Packaging Waste Regulation has applied across the EU since 12 August 2026, and it moves assessment from the main film alone to the complete finished pack — barrier, valve, zipper, adhesive, inks and labels included (GreenBioBag, 19 September 2026).

Recyclability is assessed against EU design-for-recycling criteria from 2030, where packaging below a 70% recyclability performance threshold is considered technically non-recyclable; from 2035, whether packaging is actually recycled at scale also counts. Separately, certain permeable tea, coffee and beverage bags and soft single-serve units must be designed for composting by 12 February 2028 under 2026 European Commission guidance.

Two clarifications are widely misread. This does not mean every 250 g, 500 g or 1 kg retail pouch must become compostable — the composting provision targets specific permeable and single-serve formats, while recyclability is the main direction for conventional retail pouches. And a pouch marketed as PE-based can still fail a recycling assessment if its valve, zipper, aluminium elements or coatings are incompatible: the 2026 RecyClass design-for-recycling guidelines for natural PE flexible films list LDPE, LLDPE and HDPE as compatible base materials and allow EVOH up to 5% under defined tie-layer conditions, while PET layers and aluminium foil negatively affect PE-film recyclability.

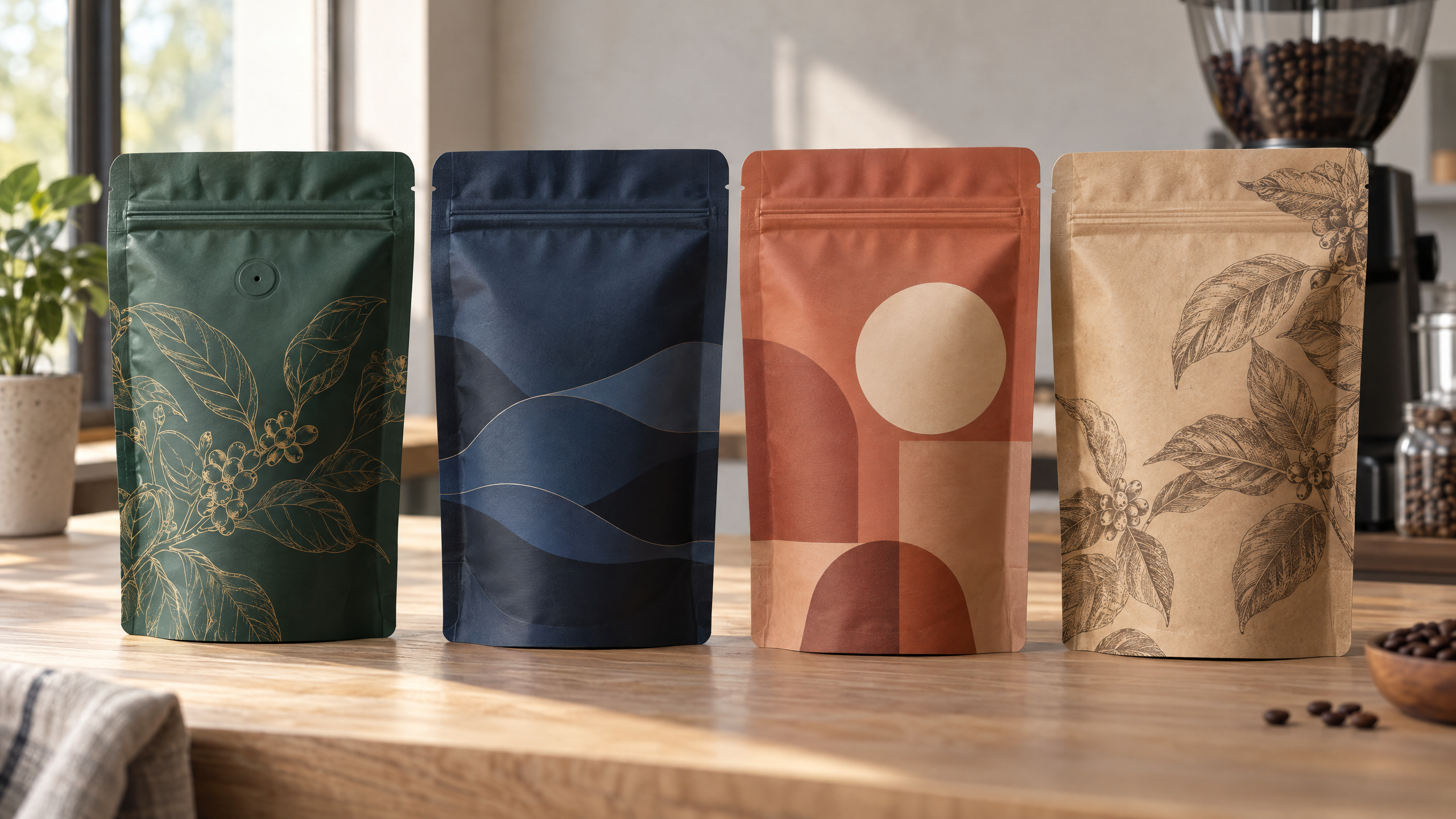

Material decisions now include component choices. Our custom printed coffee bags guide covers how valve, zipper and closure selections affect minimum order quantities and lead times.

How to Specify and Validate a Coffee Packaging Material

Specify a material by writing down target shelf life, fill weight, roast profile, distribution route and end-of-life requirement first, then choosing the lowest-cost structure that satisfies all five. Validate by testing the converted pouch, not a datasheet.

Define the failure mode first — oxidation, moisture uptake, aroma loss or oil migration — and record the acceptable quality loss at end of shelf life. Then estimate an oxygen budget by multiplying OTR by package surface area and time, adding residual headspace oxygen, seal leakage and closure ingress (CloudFilm, 20 August 2026). Shortlist two or three structures that meet the barrier target while balancing stiffness, seal performance, print requirements, cost and the intended recycling pathway. Ask for OTR measured after conversion, not only on flat film, because printing, lamination, tension and flexing can all damage the barrier layer.

Finally, validate on the filling line: run trial rolls through forming, filling, nitrogen flushing and sealing, measure headspace oxygen on packed samples rather than assuming the target was hit, and confirm shelf life with a real or accelerated study before approving mass production. The gap between flat-film data and finished-pack performance is the most common source of over-promising, because whole-package testing captures seal channels, valve openings and corners that flat-film testing cannot see.

Ready to compare structures against a specific fill size? The stand-up pouch and box bottom bag collections list dimensions for each format, and our foil flat pouch range covers the simplest high-barrier option.

Frequently Asked Questions

What is the best material for coffee packaging?

There is no single best material, only the best structure for a target shelf life. PET/AL/PE foil gives the highest oxygen barrier and longest shelf life; PET/MPET/PE is lighter and cheaper with a lower barrier ceiling; PE/EVOH/PE is the usual route to a recyclable high-barrier pouch.

Is thicker coffee packaging always better?

No. Over-specifying can add 15–25% to material cost without a measurable freshness benefit (OK Packaging, 6 October 2026). Two pouches with the same micron count can also deliver very different shelf life if their barrier layers differ, so OTR matters more than thickness.

Is metallised film as good as aluminium foil for coffee?

Not under real handling. Foil laminate stayed below a 0.05 cc/m²/day detection limit through light flexing, while metallised PET measured around 0.97 before handling and rose to 13.5–18.0 under heavy flexing (Admiral Packaging, 10 July 2026). Metallised film remains sensible for shorter shelf lives.

Do kraft paper coffee bags protect coffee properly?

Yes, if the film behind the paper is a proper barrier. Kraft paper supplies stiffness and appearance but is not itself a barrier; the inner laminate controls freshness. Kraft composites typically run 110–140 μm, and you should ask for the inner structure and OTR figure rather than judging by the outer paper.

Can compostable coffee bags match foil barrier performance?

Not at the same thickness. Compostable films have lower tensile strength, so manufacturers generally recommend a 100 μm minimum, with typical pouches running 100–130 μm. They also follow a composting end-of-life route rather than mechanical recycling and should be certified against the correct standard — EN 13432 remains the European reference for industrial composting.

What residual oxygen level should I target in a coffee pouch?

Target 3% or lower; levels above 5% lead to significant oxidation within days. Contract and private-label work commonly specifies 2% or less, and the best closed nitrogen flushing systems reach around 0.08% (Rovema, 21 December 2023).

Conclusion

Coffee packaging materials are chosen at the structure level, not the material level. Decide the shelf life you owe your customer, then work back to a barrier route — foil for the longest life, metallised PET for faster turnover, EVOH-based mono-PE for recyclability — and set thickness from fill weight and roast profile rather than habit. Then validate the finished, converted pouch instead of trusting a flat-film datasheet.

Three things to take into your next packaging conversation: ask for OTR on the converted structure and not just the base film; treat barrier film and nitrogen flushing as one specification; and evaluate the whole pack, valve and zipper included, against whichever end-of-life requirement applies to your market. If you want a structure recommendation against a specific fill size and destination market, request a quote and tell us your target shelf life.
